E5080B Vector Network Analyzer, 9 kHz / 100 kHz - 53 GHz Maximum frequency
E5080B ENA vector network analyzer with an enhanced TDR measurement option offers robust component test of passive devices and frequency converters.
Maximum frequency：53 GHz
Number of built-in ports：2, 4
Maximum number of sources：2
Integrated low-noise receivers：0
For more details: View Configuration Guide
Sales/ Rental / Repair/Upgrade / Calibration
Wide range of pre-owned testers available in stock;
inquiries by email：admin@mach-telecom.com
Highly integrated devices require an RF and microwave measurement solution offering complete characterization. The Keysight E5080B vector network analyzer (VNA) provides R&D performance up to 53 GHz and advanced test flexibility. Dynamic range, trace noise, and temperature stability guarantee reliability and repeatability.
The E5080B VNA enables complete device characterization for passive components, amplifiers, mixers, and frequency converters. Integrated DC sources, bias tees, pulse generators, pulse modulators, and an internal second source enable more measurements on one instrument. Gain deeper insights with software applications including spectrum analysis, mixer measurements, and noise figure.
The E5080B utilizes the same measurement science as other Keysight vector network analyzers such as the PNA, PXI, and USB VNA. The common software platform makes it easy to balance measurement, performance, and budget needs. This commonality guarantees measurement consistency, repeatability, and a common remote programming interface across R&D and manufacturing instruments.
choose either a 2- or 4-port option
select a frequency range from 9 kHz to 4.5/6.5/9/14/20 GHz or 100 kHz to 26.5/32/44/53 GHz
achieve complete device characterization with optional built-in DC sources, bias tees, pulse generators and pulse modulators
For more details: View Configuration Guide

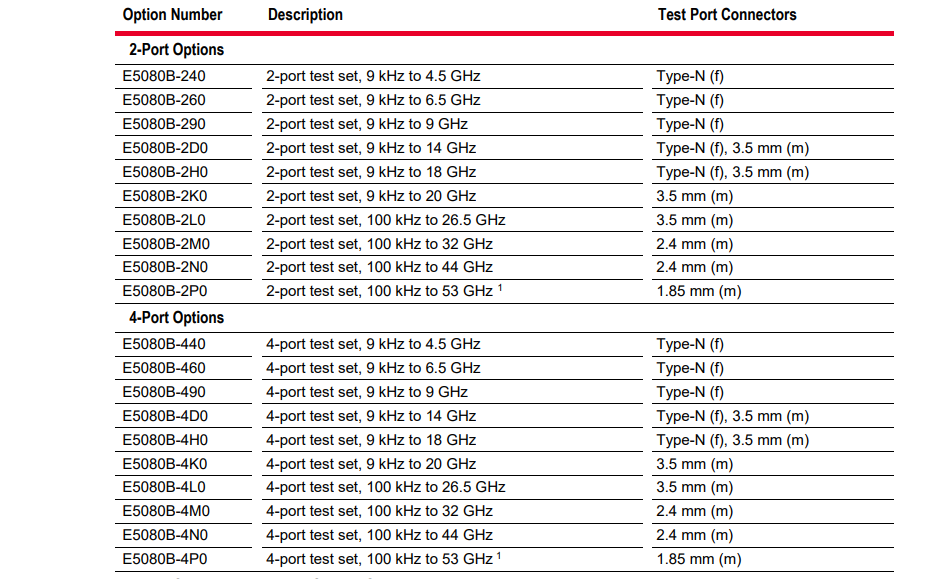

Test set
E5080B-2D0 | 2-port test set, 9 kHz to 14 GHz |
E5080B-2K0 | 2-port test set, 9 kHz to 20 GHz |
E5080B-440 | 4-port test set, 9 kHz to 4.5 GHz |
E5080B-460 | 4-port test set, 9 kHz to 6.5 GHz |
E5080B-490 | 4-port test set, 9 kHz to 9 GHz |
E5080B-4D0 | 4-port test set, 9 kHz to 14 GHz |
E5080B-4K0 | 4-port test set, 9 kHz to 20 GHz |
E5080B-240 | 2-port test set, 9 kHz to 4.5 GHz |
E5080B-260 | 2-port test set, 9 kHz to 6.5 GHz |
E5080B-290 | 2-port test set, 9 kHz to 9 GHz |
E5080B-2L0 | 2-port test set, 100 kHz to 26.5 GHz |
E5080B-2M0 | 2-port test set, 100 kHz to 32 GHz |
E5080B-2N0 | 2-port test set, 100 kHz to 44 GHz |
E5080B-2P0 | 2-port test set, 100 kHz to 53 GHz |
E5080B-442 | 4-port test set, 9 kHz to 4.5 GHz with second source |
E5080B-462 | 4-port test set, 9 kHz to 6.5 GHz with second source |
E5080B-492 | 4-port test set, 9 kHz to 9 GHz with second source |
E5080B-4D2 | 4-port test set, 9 kHz to 14 GHz with second source |
E5080B-4K2 | 4-port test set, 9 kHz to 20 GHz with second source |
E5080B-4L0 | 4-port test set, 100 kHz to 26.5 GHz |
E5080B-4L2 | 4-port test set, 100 kHz to 26.5 GHz with second source |
E5080B-4M0 | 4-port test set, 100 kHz to 32 GHz |
E5080B-4M2 | 4-port test set, 100 kHz to 32 GHz with second source |
E5080B-4N0 | 4-port test set, 100 kHz to 44 GHz |
E5080B-4N2 | 4-port test set, 100 kHz to 44 GHz with second source |
E5080B-4P0 | 4-port test set, 100 kHz to 53 GHz |
E5080B-4P2 | 4-port test set, 100 kHz to 53 GHz with second source |
E5080B-2H0 | 2-port test set, 9 kHz to 18 GHz |
E5080B-4H0 | 4-port test set, 9 kHz to 18 GHz |
E5080B-4H2 | 4-port test set, 9 kHz to 18 GHz with second source |
Internal bias tees
E5080B-140 | Add internal bias tees for 4-port E5080B up to 20 GHz |
E5080B-120 | Add internal bias tees for 2-port E5080B up to 20 GHz |
Calibration documentation
E5080B-1A7 | Calibration + Uncertainties + Guardbanding |
E5080B-A6J | ANSI Z540-1-1994 Calibration |
Additional hardware
E5080B-172 | Add GPIB interface |
E5080B-1E5 | Add high stability timebase |
E5080B-175 | Add analog input and output |
E5080B-021 | Add pulse modulator to internal 1st source |
E5080B-022 | Add pulse modulator to internal 2nd source |
Additional spectrum analysis hardware
E5080B-090 | Spectrum analysis hardware, 9 kHz to 4.5 GHz |
E5080B-091 | Spectrum analysis hardware, 9 kHz to 6.5 GHz |
E5080B-092 | Spectrum analysis hardware, 9 kHz to 9 GHz |
E5080B-093 | Spectrum analysis hardware, 9 kHz to 14 GHz |
E5080B-094 | Spectrum analysis hardware, 9 kHz to 20 GHz |
E5080B-096 | Spectrum analysis hardware, 100 kHz to 32 GHz |
E5080B-097 | Spectrum analysis hardware, 100 kHz to 44 GHz |
E5080B-098 | Spectrum analysis hardware, 100 kHz to 53 GHz |
E5080B-095 | Spectrum analysis hardware, 100 kHz to 26.5 GHz |
Connector type
E5080B-1NC | Equipped with type-N connectors |
Accessories
U8487A | Power Sensor; USB average thermocouple, 10MHz-50GHz |
E5080B-181 | Add keyboard |
E5080B-182 | Add mouse |
E5080B-1CM | Rack mount kit for installation without handles |
E5080B-1CP | Rack mount kit for installation with handles |
Software
S96011B | Enhanced time domain analysis with TDR |
S96552B | Multiport calibration assistant |
S96090B | Spectrum analysis |
S96089B | Differential and I/Q devices measurements |
S96086B | Gain-compression measurements |
S96083B | Vector and scalar mixer/converter measurements |
S96084B | Embedded LO capability |
S96029B | Noise figure measurements with vector correction |
S96025B | Basic pulsed-RF measurements |
S96010B | Time domain analysis |
S96007B | Automatic fixture removal |
S96082B | Scalar mixer/converter measurements |
S96015B | Real-time S-Parameter and Power Measurement Uncertainty |
S96460B | True-mode stimulus |
S96088B | Source phase control |
S96087B | Intermodulation distortion measurements |
S96024B | Basic Pulsed-RF Measurements Lite |
S96041B | Impedance Analysis |
S96111B | Active hot parameters, restricted to 50 GHz |
S96008B | Probe and fixture leakage calibration |
